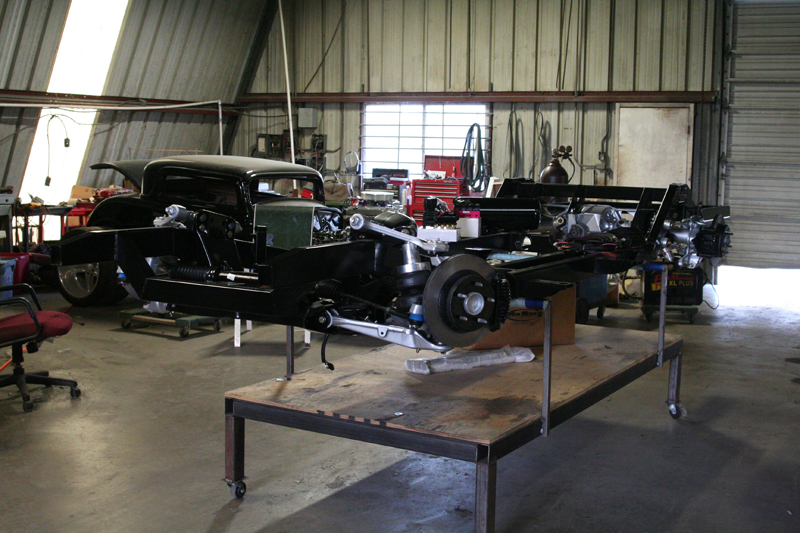

Hot Rod Jim’s Basic rolling chassis with Air Ride is designed to be a stable comfortable ride on a solid platform using inexpensive modern technology. The Basic rolling chassis with air ride uses the 1985-1988 Corvette suspension components, but replaces the stiff carbon fiber leaf springs with adjustable air bags. This chassis is ideal for touring cars, because it allows a low stance and modern suspension with no body modification required. The Air Ride offers you the softest ride you’ll ever find thanks to the ability to modify the spring rate on the fly. The Air Ride Shockwaves work best with the Air Ride Leveling System, not included with this chassis. This system automatically balances the car every time it starts to adapt the car to weight changes.



Click to Enlarge





This suspension offers a narrower track width for deeper backspacing on wheels and achieves more lip. The smaller calipers and rotors will also allow the owner to run 16” wheels for a more traditional look. Comfort and reliability without breaking the bank this chassis is for you.



The Basic Rolling Chassis Air Ride

Frame



Front Suspension



Rear Suspension

  • Hot Rod Jims C4 Frame
  • Black Powder coating
  • 11 gauge gusseted boxed tubing
  • Transmission cross member
  • Motor and transmission mounts
  • No Body modification required




  • 1985-1988.5 Corvette front suspension
  • Aluminum dual-A-arms refinished in silver
  • New polyurethane  bushings
  • Power rack and pinion rebuilt by AC Delco
  • New tie rod ends
  • Black powder coated suspension cradle
  • Air Ride Technologies Shockwaves
  • Front Brakes
    • Rebuilt Corvette aluminum calipers
    • New 11” rotors
    • Available in red or black

  • 1985-1987 Corvette rear suspension
  • All aluminum suspension components– refinished in silver
  • New half shaft U-Joint
  • HRJ adjustment system – powder coated black
  • New polyurethane bushings
  • Dana 36 differential with 3.08 Gears (good for automatic transmissions)
  • Air Ride Technologies Shockwaves
  •  Rear Brakes
    • Rebuilt Corvette aluminum calipers
    • New 11” rotors
    • Available in red or black

Options & Upgrades

Air Rail

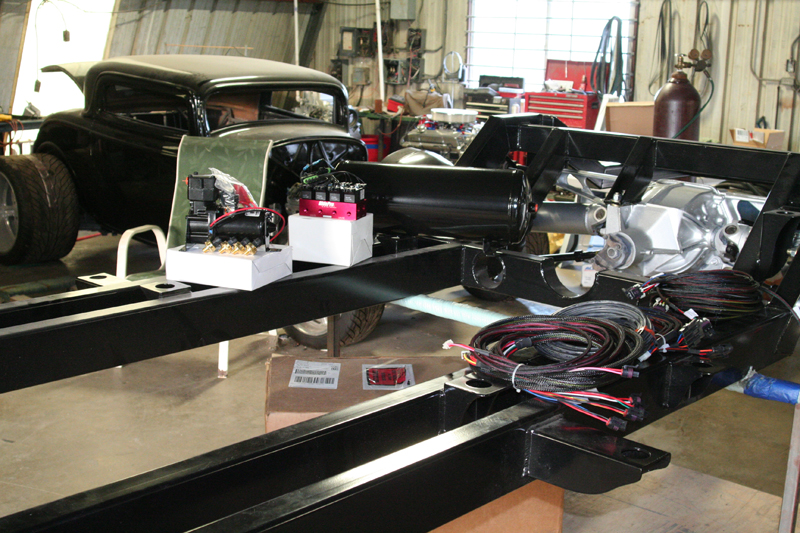

The air rail is where we take your fame and seal 1 or 2 of the out side frame rails to make the air tank for your air ride system. This removes the tanks from your trunk and with the compressors mounted under the car on the frame rail. You will remove the vibration of the compressors and almost any noise that would normally vibrate into the cabin of the car by the system. One rail becomes a 3 gallon tank. We suggest more tank for bigger cars and a faster rise time.



Level Ride MAX System 4800 Series

The Level Ride's 4800 system is Air Ride’s fastest recovering system with the most take storage available. It offers the fastest rise times and the quickest recovery times. This kit has 2 5 gallon tanks and 2 compressors requiring more room for installation. This system would be a better Idea for customers with bigger heavier car or higher load compactly that will need air compensation, wagons, 4 doors, nomads. This kit comes with compressors, tanks, air lines, sensors, electrical systems, computers, and cables you’ll need to have air ride on your car. Click here to see more information about Air Ride’s Level Ride System.




Level Ride System 4000 Series

The Level Ride 4000 system is the smallest system offered for the Level Ride series of systems. The 4000 has less compressors and less tank storage as well as smaller lines than the other systems. This system is ideal for a car not designed to go up and down quickly. This system is better on room but will also level the car out just like the bigger system. This system also comes with compressors, tanks, air lines, sensors, electrical systems, computers, and cables you’ll need to have air ride on your car. Click here to see more information about Air Ride’s Level Ride System.




Brake Lines

Braided stainless steel flex lines and steel hard lines installed on your chassis.



Dana 44 Upgrade

This will upgrade your rear suspension to the heavy Dana 44 differential.  The Dana 44’s change in price with market demand. Please call for current pricing.



Sport Kit

The sport adds components to improve the handling characteristics of the car. Without drastically increasing the price

  • Front 24mm sway bar
    • Powder coated
  • Urethane bushings
  • Rear 19mm sway bars
    • Powder coated
  • Urethane bushings
  • Chromalloy Teflon coated end links
  • Adjustable 4 bars



Air Ride SS Kit

Our Air RideSuper Sport kit is designed to take out the last links of deflection and give you unparallel feedback and ultimate in handling response for your shoe box. The Sport kit is first installed on the frame. Then the Single adjustable Shockwaves and urethane bushing are removed. We replace those with Air Ride’s Dual Adjustable Shockwave with bearing ends. The front sway bar is further upgraded to aid in faster weight transfer. The SS kit shows its best potential when crossed with minor body modifications. Please see the Upgrades page here for more information.

  • Front 30mm sway bar
    • Powder coated
  • Urethane bushings
  • Rear 19mm sway bars
    • Powder coated
  • Urethane bushings
  • Chromalloy Teflon coated end links
  • Adjustable 4 bars
  • Air Ride’s Dual Adjustable Shockwave
    • Bearing mounts



Basic Rolling Chassis W/Air Ride FAQ


Wheel and Tire Information

                Hot Rod Jim recommends a 245mm wide front tire (9.6 inches) and 275mm wide rear tire (10.8 inches) will fit the lease effort and are a common size tire.
To allow for more tire clearance you can roll the outer fenders and quarters for bigger tires.
The Grand Sport requires a minum wheel size of 17 inches to clear the brakes.

Differential Power Rating

                The C4 corvettes came with two different differentials, the Dana 36 and the Dana 44. The Dana 36 came behind the automatic Corvettes from 1984 until 1996 and the manual Corvettes in 1984. The Dana 44 came in the manual corvettes from 1985- 1996. The Dana 44 has a bigger case with beefier gears and better yokes, and a heaver bat wing. We are running a Dana 36 with our Black Widow project with 3.73 gears, LS1 and a T56 6 speed. We are actively trying to break it with weekly road racing and the use of the car as a daily driver.

Transmission Notes

The 4L80 automatic transmission and T56 manual transmission will require minor floorboard modification to keep them up between the frame rails.
